HAY-05-229 24″ SM PRO SERIES SAND FILTER W/ SLIDE VALVE

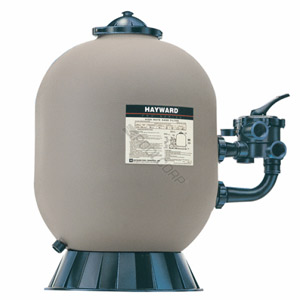

Hayward S244SV Pro(TM) High-Rate Side Mount Sand Filter with 2 Inch Slide Valve; 24 Inch, 3.14 sq-ft, 50 psi
- Product # : HAY-05-229
- Mfg : HAYWARD POOL PRODUCTS INC
- Mfg # : S244SV
- Department : FILTERS
- Product Line : Filters – Sand
- UOM ( Default ) : EA
- Obsolete : This product is not obsolete.
- Ship Weight (lbs) : 59.20
- Dimensions : 24.00×24.00×43.5
Product Features
- Durable corrosion-proof materials for dependable all weather performance
- Large pressure sand/water drain for rapid winterizing or servicing
Product Specifications
| Brand | Hayward |
| Item | Sand Filter with 2 Inch Slide Valve |
| Type | High-Rate |
| Series | Pro™ |
| Filtration Area | 3.14 sq-ft |
| Filtration Rate | 62 gpm/sq-ft |
| Size | 24 Inch |
| Maximum Working Pressure | 50 psi |
| Mounting Type | Side Mount |
| Turnover | 29760 gal at 8 hrs, 37200 gal at 12 hrs |
| Media | No. 1/2 Silica Sand (0.45 – 0.55 mm) |
| Media Required | 300 lbs |
| Filter Tank | Molded Polymeric |
| Filter Control Valve | 2 Inch Slide Valve |
| Fastening | Flange Clamp Design |
| Mounting Base | Injection-Molded Polymer |
| Vertical Clearance | 18 Inch |
| Side Clearance | 18 Inch |
| Under drain | 360 deg Self-Cleaning Slotted Laterals, Precision Installed in Ball-Joint Assembly |
