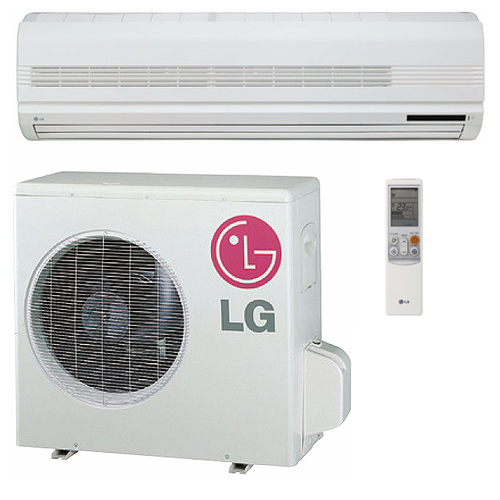

LG Single Zone Mega Standard 9k BTU 16.3 SEER Ductless Mini-Split Heat Pump

Package Includes: LG Single Zone Mega Standard Condenser and Air Handler.

Package Model: LS090HEV1

LG Single Zone Mega Standard 9k BTU 16.3 SEER Ductless Mini-Split Heat Pump

• R410A refrigerant
• Ultra quiet indoor unit operation
• Self-cleaning coils in the indoor unit for easier
  maintenance
• Allows refrigerant piping lengths up to 66 or
  49 feet, and elevation difference of 33 or 23
  (depending on the model)

• Operates down to 64°F in cooling mode
• Inverter variable-speed compressor in the
  outdoor unit for energy-saving operation
• Many modes included, controlled through
  wireless remote: Cooling, Heating,
  Dehumidifying, Fan, Auto, Auto Sleep, Defrost
• Chaos Wind electronically controls fan speeds to
  create a more natural flow of air; Jet Cool / Jet
  Heat operates at high fan speeds for 30
  minutes to quickly cool / heat down a room

• Sleep mode
• Chaos Wind
• Auto restart
• R-410A Refrigerant
• Dehumidifying mode
• 24-Hour on/off timer
• Cooling/Heating/Fan mode
• Inverter (Variable speed compressor)

• Auto Changeover
• Jet cool/Jet heat
• Ultra quiet operation
• Gold Fin™ Anti-corrosion
• 2-Way Auto Swing (up & down)
• Condensate sensor connection
• Built-in low ambient standard, down to 14ºF
  (cooling mode)

Indoor Unit Includes

• Installation manual
• Installation plate & hardware

• Wall unit
• Remote control, batteries, holder &
  holder hardware

Outdoor Unit Includes

• Exterior unit has sufficient refrigerant for charging
  indoor coil and a 24.6’ line set (line set not included)

• Exterior unit

• Specifications
• Engineering Manual

• Brochure
• Warranty
