Water Source Heat Pumps

For prices and detailed information, please, give us a call: 1 888 205 7766

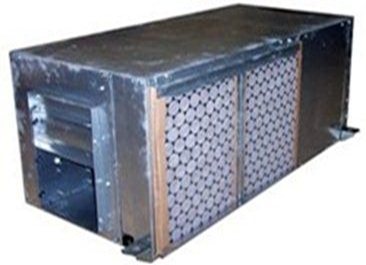

WSHC-WSHX

STANDARD FEATURES


  • 100% Factory run tested.

  • All units operate with environmentally friendly R-410A refrigerant.

  • Heavy Gauge Galvanized Steel Cabinet.

  • Cabinets insulated with ¾" Tuf-Skin RX™ treated with an anti-microbial agent.

  • Non-corrosive Thermoplastic Condensate Pan, sloped for positive drainage.

  • TXV metering device.

  • High and Low pressure Service Ports.

  • Refrigerant Filter-drier and Discharge Muffler.

  • Coaxial Water-To-Refrigerant Heat Exchanger.

  • Heat exchanger available in Copper or Cupronickle.

  • Digital Control Module (DCM).

  • Multi-speed blower motor.

  • Panel-mounted FPT Water Connections.

  • High efficiency scroll (24-60) compressor.

  • System reversing valve (4-way ).

  • Factory mounted hanger brackets.

  • Field convertible discharge air arrangement from end to straight or straight to end.

  • Large Removable Panels for Service access.

  • 50 VA Transformer.

  • 1" Throwaway Filter.

  • 208-230/1/60


installation instructions button
specifications and features
list of parts first co

WSHC Models:

  • First Co 79AF242HLE
     2.0 Ton Horizontal Water Source Heat Pump, PSC Motor, Left Hand, Copper, 208/240V, 1P
  • First Co 79AF302HLE
     2 1/2 Ton Horizontal Water Source Heat Pump, PSC Motor, Left Hand, Copper, 208/240V, 1P
  • First Co 79AF302HRE
     2 1/2 Ton Horizontal Water Source Heat Pump, PSC Motor, Right Hand, Copper, 208/240V, 1P
  • First Co 79AF362HLE
     3.0 Ton Horizontal Water Source Heat Pump, PSC Motor, Left Hand, Copper, 208/240V, 1P
  • First Co 79AF422HLE
     3 1/2 Ton Horizontal Water Source Heat Pump, PSC Motor, Left Hand, Copper, 208/240V, 1P
  • First Co 79AF422HRE
     3 1/2 Ton Horizontal Water Source Heat Pump, PSC Motor, Right Hand, Copper, 208/240V, 1P
  • First Co 79AF482HLE
     4.0 Ton Horizontal Water Source Heat Pump, PSC Motor, Left Hand, Copper, 208/240V, 1P
  • First Co. WSHC042 C E RH FE
     Horizontal Water Source Heat Pump, 3.5 Ton, Copper, Right Hand, End Discharge, 208-230V/3 Phase
  • First Co. WSHC042 C E LH FE
     Horizontal Water Source Heat Pump, 3.5 Ton, Copper, Left Hand, End Discharge, 208-230V/3 Phase
  • First Co. WSHC048 C E RH FE
     4 Ton Horizontal Water Source Heat Pump, PSC, Right Hand, Copper, End Discharge, 208-230V/3P
  • First Co. WSHC048 C F LH FE
     Horizontal Water Source Heat Pump, 4 Ton, Copper, Left Hand, End Discharge, 460V/3 Phase
  • First Co. WSHC060 C E LH FE
     Horizontal Water Source Heat Pump, 5 Ton, Copper, Left Hand, End Discharge, 208-230V/3 Phase
  • First Co. WSHC060 C F LH FE
     Horizontal Water Source Heat Pump, 5 Ton, Copper, Left Hand, End Discharge, 460V/3 Phase

WSHX Models:
  • First Co 79EF306HLE
     Horizontal Water Source Heat Pump - ECM Motor - 2 1/2 Tons - Left Hand - Cupronickel - 14 EER
  • First Co 79EF306HRE
     Horizontal Water Source Heat Pump - ECM Motor - 2 1/2 Tons - Right Hand - Cupronickel - 14 EER
  • First Co 79EF366HLE
     Horizontal Water Source Heat Pump - ECM Motor - 3.0 Tons - Left Hand - Cupronickel - 14 EER
  • First Co 79EF366HRE
     Horizontal Water Source Heat Pump - ECM Motor - 3.0 Tons - Right Hand - Cupronickel - 14 EER

call us now1 888 205 7766
